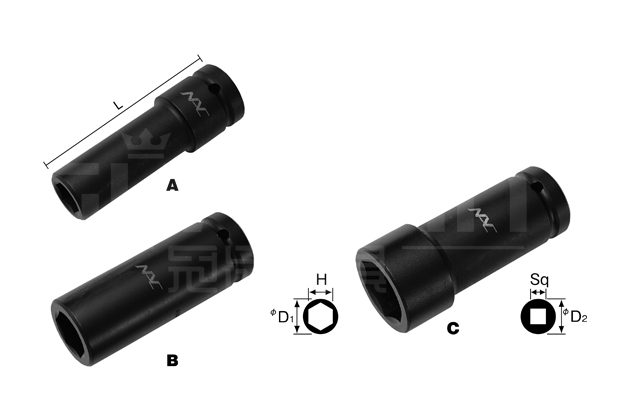

| 品名 | 形状 | 插入角(mm) | Ｈ(mm) | ØD1(mm) | ØD2(mm) | L(mm) |
| 41050 | A | 12.7 | 10 | 17.5 | 25 | 50 |
| 41075 | A | 12.7 | 10 | 17.5 | 25 | 75 |
| 41150 | A | 12.7 | 11 | 19 | 25 | 50 |
| 41250 | A | 12.7 | 12 | 20.5 | 25 | 50 |
| 41275 | A | 12.7 | 12 | 20.5 | 25 | 75 |
| 412100 | A | 12.7 | 12 | 20.5 | 25 | 100 |
| 41350 | A | 12.7 | 13 | 21.5 | 25 | 50 |
| 41375 | A | 12.7 | 13 | 21.5 | 25 | 75 |
| 413100 | A | 12.7 | 13 | 21.5 | 25 | 100 |
| 41450 | A | 12.7 | 14 | 22.5 | 25 | 50 |
| 41475 | A | 12.7 | 14 | 22.5 | 25 | 75 |
| 414100 | A | 12.7 | 14 | 22.5 | 25 | 100 |
| 41750 | B | 12.7 | 17 | 28 | 28 | 50 |
| 41775 | B | 12.7 | 17 | 28 | 28 | 75 |
| 417100 | B | 12.7 | 17 | 28 | 28 | 100 |
| 41950 | C | 12.7 | 19 | 30 | 28 | 50 |
| 41975 | C | 12.7 | 19 | 30 | 28 | 75 |
| 419100 | C | 12.7 | 19 | 30 | 28 | 100 |
| 42150 | C | 12.7 | 21 | 33 | 28 | 50 |
| 42175 | C | 12.7 | 21 | 33 | 28 | 75 |
| 421100 | C | 12.7 | 21 | 33 | 28 | 100 |
| 42250 | C | 12.7 | 22 | 34 | 28 | 50 |
| 42275 | C | 12.7 | 22 | 34 | 28 | 75 |
| 42450 | C | 12.7 | 24 | 36 | 28 | 50 |
| 42475 | C | 12.7 | 24 | 36 | 28 | 75 |
| 42675 | C | 12.7 | 26 | 39 | 28 | 75 |
| 42775 | C | 12.7 | 27 | 41 | 28 | 75 |
| 43075 | C | 12.7 | 30 | 46 | 28 | 75 |
| 43275 | C | 12.7 | 32 | 48 | 28 | 75 |
